さまざまな種類の送風機の専門の製造業者

|
| 起源の場所: | 中国 |
| ブランド名: | BK |
| 証明: | ISO9001/ISO14001/CE |
| モデル番号: | BKW4007 |
| 最小注文数量: | 1セット |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 輸出標準木製ケース |
| 受渡し時間: | 5から20仕事日は順序量および指定によって、決まる |
| 支払条件: | LC、T/T |
| 供給の能力: | 月あたり100セット |
| 名前: | 根の回転式丸い突出部の送風機 | タイプ: | 肯定的な変位の根のタイプ、3つの丸い突出部 |
|---|---|---|---|
| 空気容量: | 0.8～1.87m3/分 | 差動圧力を放出します: | 60-100KPA |
| モーター出力: | 1.5-5.5 kw | 退院しました: | DN50 (2インチ) |
| ドリブンタイプ: | ベルトとプーリーで接続されたモーター駆動型 | 設置タイプ: | 縦型、横型もございます |
| 重量 (モーターなし): | 92 kg | スピード: | 1650-2200rpm |
| 冷水: | 3L/分 | シャフトパワー: | 2.34-4.39KW |
| ハイライト: | 3 L/min Cooling Water Roots Blower,60-100KPA Discharge Pressure Tri-Lobe Blower,1.5-5.5 KW Motor Power Roots Rotary Lobe Blower |
||
Min.Pressure 0.6 kgf/cm² ,DN50,Cooling Water 3 L/min, Positive Water Treatment Roots Blower

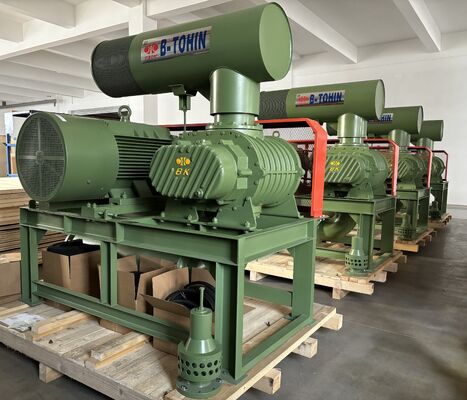

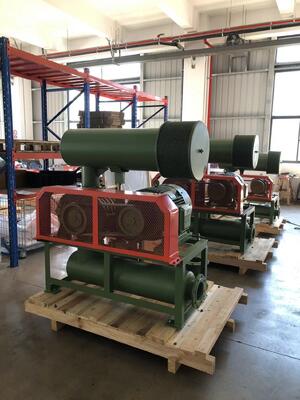

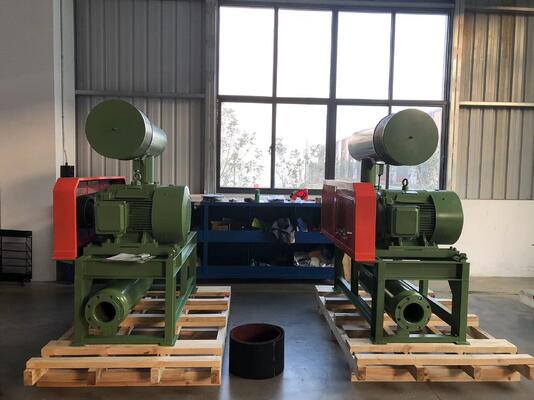

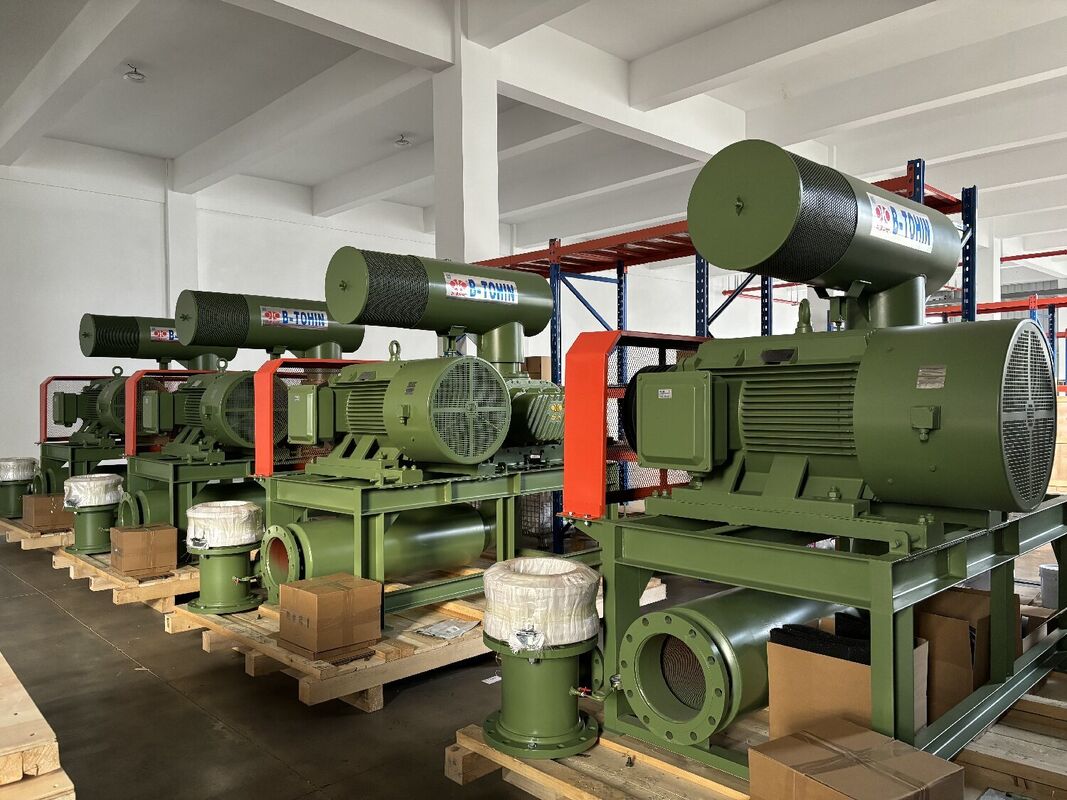

On the base of introduced technology from American, we developed BKW Series Roots blowers with tri-lobes and water cooling structure. The blower unit has a compact construction including blower, motor, inlet and discharge silencers, filter, flexible joints, relesf valve, check valve, and pressure gauge, and also can be equipped with acoustic enclosure and control devices.
Specifications
|
Model |
BKW4007 |
|
Air capacity |
0.8-1.87m3/min |
|
Discharge differential pressure |
60-100KPA |
|
Rotary speed |
1650-2200rpm |
|
Cooling water volume |
3 L/min |
|
Motor type |
1.5-5.5KW |
|
Motor brand |
Standard: Siemens Beide or Wannan motor |
|
Installation type |
Standard: horizontal type. |
|
N.W. of blower without motor |
92kg |
|
Packing size Approx. |
Packing case for blower: 1.1*0.8*1.1m (L*W*H) |
Applications
1. aeration waste water treatment
2. backwashing in sewage treatment
3. pneumatic conveying in cement plants
4. dust removal in power plant
Parameter sheet
| Model | Speed | Inlet capacity (m3/min)and shaft power (KW) | Cooling water | |||||||||
| 0.6kgf/cm2 | 0.7kgf/cm2 | 0.8kgf/cm2 | 0.9kgf/cm2 | 1.0kgf/cm2 | ||||||||
| 6000mmH2O | 7000mmH2O | 8000mmH2O | 9000mmH2O | 10000mmH2O | ||||||||
| 0.06Mpa | 0.07Mpa | 0.08Mpa | 0.09Mpa | 0.1Mpa | ||||||||
| rpm | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | L/min | |
| BKW4007 | 1650 | 1.05 | 2.34 | 0.94 | 2.58 | 3 | ||||||
| 1750 | 1.20 | 2.48 | 1.09 | 2.73 | 0.99 | 2.99 | 0.89 | 3.24 | 0.80 | 3.49 | ||
| Port Dia: DN50(2") | 1850 | 1.35 | 2.62 | 1.24 | 2.89 | 1.13 | 3.16 | 1.04 | 3.42 | 0.94 | 3.69 | |
| 1950 | 1.50 | 2.76 | 1.39 | 3.05 | 1.28 | 3.33 | 1.18 | 3.61 | 1.09 | 3.89 | ||
| 2100 | 1.72 | 2.98 | 1.61 | 3.28 | 1.50 | 3.58 | 1.41 | 3.89 | 1.31 | 4.19 | ||
| 2200 | 1.87 | 3.12 | 1.76 | 3.44 | 1.65 | 3.75 | 1.55 | 4.07 | 1.46 | 4.39 | ||
Structure of blower main body
Flow direction of cooling water
Assembling drawing of blower package
Outline Dimension
FAQ
Q1. Are you manufacturer or trading company?
We are the professional machinery manufacturer.Now the company has formed an annual production and sales scale of more than 30000 sets of blowers and water pumps.
Q2: Where is your factory located? May I have a visit?
Warmly welcome! Our factory is located in the Industrial Park for Environmental Science and Technology , Yixing, China.
Q3:What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Application
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.
Q4: What is your warranty?
Our warranty is 12 months after received the machine.
Q5. What is your terms of packing?
A: Generally, we pack our goods in Fumigation Free Plywood Case. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q6. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.
Q7. What are your terms of payment?
TT 30% as the advance payment and TT 70% after inspection before shipping.
