さまざまな種類の送風機の専門の製造業者

|
| 起源の場所: | 中国 |
| ブランド名: | BK |
| 証明: | ISO9001/ISO14001 |
| モデル番号: | YU-EG40 |
| 最小注文数量: | 1セット |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 輸出標準木製ケース |
| 受渡し時間: | 注文量と仕様に応じて 15~30日 |
| 供給の能力: | 毎月20セット |
| 容量: | 0.42～1.65m3/分 | 差動圧力を放出します: | 10-70kpa |
|---|---|---|---|
| ボアサイズ: | DN40(1.5インチ) | 冷却タイプ: | 水 |
| 接続タイプ: | ベルト駆動 | ベルトおよび滑車: | バイオガス,廃棄ガス,爆発媒体の輸送 |
| 冷水: | 3L/分 | スピード: | 1500-2150rpm |
| シャフトパワー: | 0.82-2.42KW |

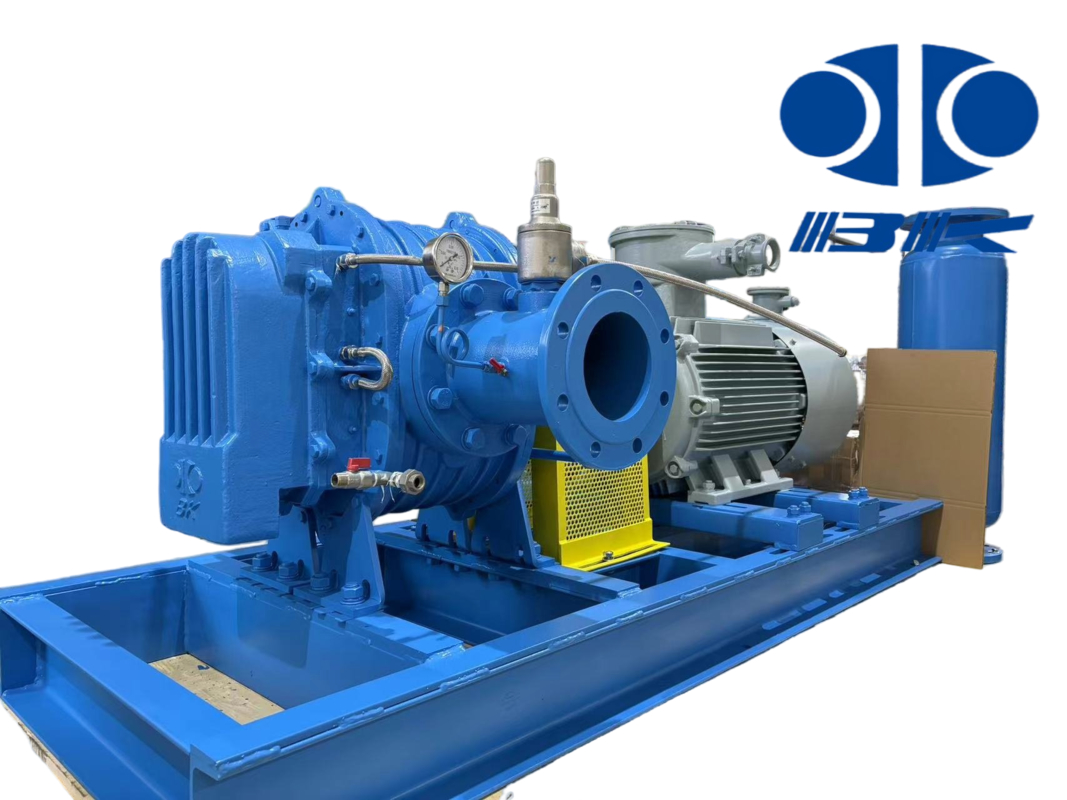

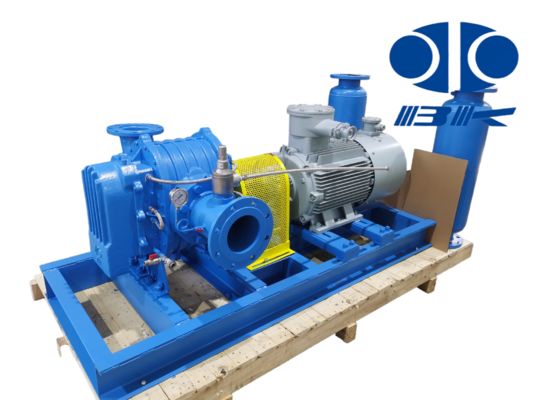

Roots type Biogas Blower DN40, anti-corrosive, explosion-proof
About YU-EG
A new type blower designed by our company, impeller and internal surface with special coating, capable of handling particular gases with acids, alkalis, corrosive, inflammable or explosive materials.
Specifications
|
Model |
YU-EG40 |
|
Air capacity |
0.42-1.65m3/min |
|
Discharge differential pressure |
10-70KPA |
|
Rotary speed |
1500-2150rpm |
|
Cooling water volume |
3 l/min |
|
Motor type |
1.5-4KW 380/400/415/440V, 3PHASES, 50/60HZ, explosion-proof type motor |
|
Motor brand |
Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option |
|
Installation type |
Standard: vertical type |
|
N.W. of blower without motor |
75kg |
|
Packing size Approx. |
1.635*0.6*1.08m (length*width*height) |
|
Features |
1. Suitable for flammable and corrosive gas because of its explosion proof and antisepsis performance 2. Equipped with multiply seal to prevent leakage 3. Sprayed with special antisepsis material on cylinder and cover. |
Parameter sheet
| Model | Port Dia (mm) |
Inlet capacity (m3/min)and shaft power (kW) under various pressure | Cooling water | ||||||||
| Speed rpm |
0.1kgf/cm2 | 0.2kgf/cm2 | 0.3kgf/cm2 | 0.4kgf/cm2 | |||||||
| 1000mmH2O | 2000mmH2O | 3000mmH2O | 4000mmH2O | ||||||||
| 0.01Mpa | 0.02Mpa | 0.03Mpa | 0.04Mpa | ||||||||
| m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | (l/min) | |||
| YU-EG40 | 40(1.5") | 1500 | 1.01 | 0.82 | 0.81 | 0.96 | 0.66 | 1.11 | 0.53 | 1.25 | 3 |
| 1650 | 1.16 | 0.90 | 0.96 | 1.06 | 0.81 | 1.22 | 0.68 | 1.38 | |||
| 1800 | 1.31 | 0.98 | 1.12 | 1.16 | 0.96 | 1.33 | 0.85 | 1.50 | |||
| 1900 | 1.42 | 1.04 | 1.20 | 1.22 | 1.11 | 1.40 | 1.05 | 1.59 | |||
| 2150 | 1.65 | 1.17 | 1.45 | 1.38 | 1.30 | 1.59 | 1.17 | 1.80 | |||
| Model | Port Dia (mm) |
Inlet capacity (m3/min)and shaft power (kW) under various pressure | Cooling water | ||||||||
| Speed rpm |
0.5kgf/cm2 | 0.6kgf/cm2 | 0.7kgf/cm2 | 0.8kgf/cm2 | |||||||
| 5000mmH2O | 6000mmH2O | 7000mmH2O | 8000mmH2O | ||||||||
| 0.05Mpa | 0.06Mpa | 0.07Mpa | 0.08Mpa | ||||||||
| m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | (l/min) | |||
| YU-EG40 | 40(1.5") | 1500 | 0.42 | 1.40 | 3 | ||||||
| 1650 | 0.57 | 1.54 | 0.53 | 1.80 | |||||||
| 1800 | 0.74 | 1.68 | 0.68 | 1.90 | |||||||
| 1900 | 0.93 | 1.77 | 0.73 | 1.95 | 0.73 | 2.14 | |||||
| 2150 | 1.06 | 2.00 | 0.96 | 2.21 | 0.87 | 2.42 | |||||
Structure of blower main body
Assembling drawing of blower package
Standard supply of scope
1. shaft blower
2. vacuum pressure relieve valve
3. check valve
4. inlet silencer(with filter)
5. discharge silencer
6. public base (with belt cover)
7. rubber flexible joint and shock pad
8. pulley
9. pressure gauge
10. belt
11. bolts and nuts and other connection parts
12. motor
FAQ
1. What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Application
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.
2. What is your warranty?
Our warranty is 12 months after received the roots blower. During the warranty period, replace the damaged parts for free of charge. Out warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure continuous safe and high-quality equipment operation.
3. How long is the service life of roots blower?
In normal use environment
A- Service life of blower is more than 10 years.
B- Service life of Impeller is more than 60, 000 hours.
C- Service life of bearing is more than 50, 000 hours.
D- Service life of gear is more than 60, 000 hours.
4. What is your terms of packing?
A: Generally, we pack our goods in Fumigation Free Plywood Case. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
5. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.
6. What are your terms of payment?
1. TT30% as the advanced payment and TT 70% after inspection before shipping.
2.100% irrevocable L/C at stght.
